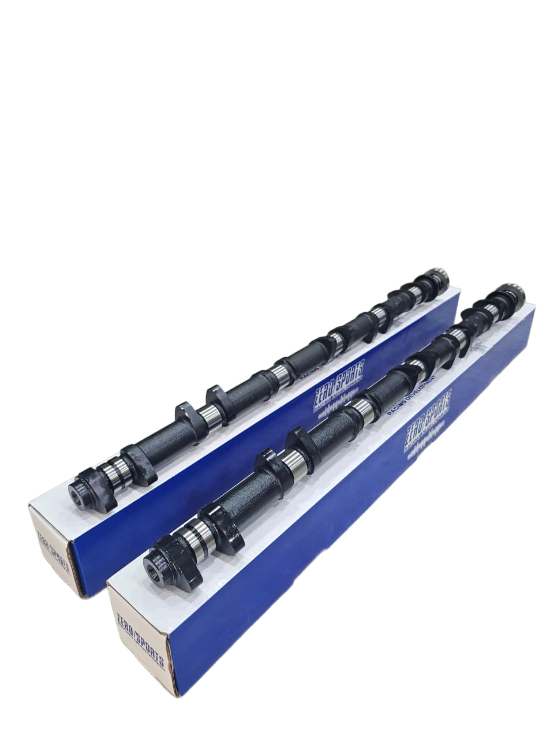

The ZEROSPORT Cams intake and exhaust camshaft kit is a high-performance valvetrain upgrade engineered specifically for the Nissan TB48 / TB48DE inline-six engine.
Product Specifications & Performance
- Part Number / Profile: 4036
- Duration: 290 Degrees
- Valve Lift: 11.5mm
- Lobe Separation Angle (LSA): 110 Degrees
- Power Band: Engineered to deliver strong mid-range and top-end power. It is highly optimized for modified naturally aspirated or moderately forced induction builds looking to significantly improve high-RPM breathing.
- Target Application: Ideal for engines with limited modifications or building blocks requiring substantial valvetrain optimization.
Important Installation & Valvetrain Notes
When upgrading to an aggressive 11.5mm lift profile on the TB48 engine, standard setup precautions must be strictly followed:
- Base Circle Verification: The base circle diameter of high-performance grinds can change from OEM specs. Always verify your hydraulic lifter preload, rocker geometry, and the overall cam-to-rocker wipe pattern during assembly.
- Clearance Checks: Thoroughly check all valvetrain elements to ensure there is adequate physical clearance and that components are not fouling against the cylinder head or engine block casting. TB48
- Valve Spring Requirements: Ensure your valve springs match the high-lift demands. Upgraded springs must provide correct open/close pressures and maintain a minimum coil bind clearance of 0.060". Additionally, check that the spring retainer-to-valve guide clearance maintains at least a 0.060" gap.
