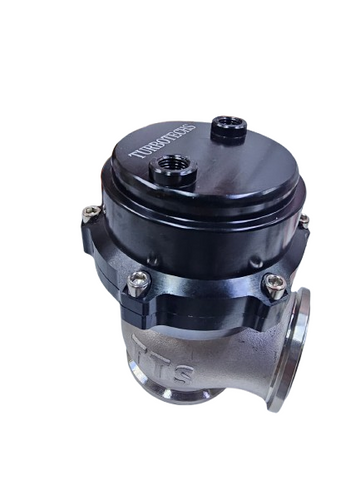

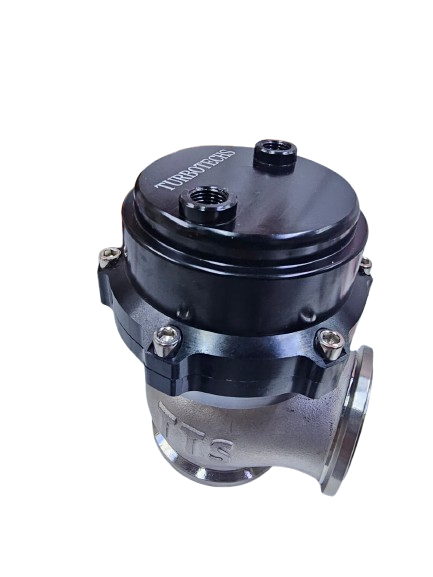

The TURBOTECHS Turbo TTS46 Wastegate is a 46mm external wastegate with v-band flange connections. With over 6 years of turbocharger development and racing experience, TURBOTECHS Turbo takes great pride in providing the best external wastegate on the market today. TURBOTECHS's TTS46 Valve is designed to be a direct replacement for most manufacturers flanges. Every valve is warranted to be free from manufacturer's defect for 6 months or 2000 miles!
The TTS46 is constructed from the highest grade components, inside and out. From the high temperature 347 stainless steel investment cast valve body to the Kevlar reinforced diaphragm. The investment casting process leaves you with a smooth internal surface finish for better flow and accurate boost control. A satin black anodized wastegate cap finished off the look for long lasting, low key appearance.
TURBOTECHS TTS46 Features:
- 347 Stainless Steel Investment Cast Valve Body
- Nickel Chromium Alloy Valve Seat
- 6061 Billet Aluminum Housing w/ Black Satin Anodizing
- 17-7 Precipitation Hardened Springs
- Compatible with most aftermarket boost controllers (manual and electronic)
- Direct Fit Replacement for most 44mm units
Includes:
- TTS46 46mm Wastegate Valve Assembly
- All 5 Springs (Red & Green Pre-Installed - 15 psi/1.03 bar)
- Valve Seat
- 304 Stainless Steel Inlet V-Band Flange and Clamp (85-90 in-lbs) (Counterbored for 1-7/8" OD Tubing)
- 304 Stainless Steel Outlet V-Band Flange and Clamp (85-90 in-lbs) (Counterbored for 1-3/4" OD Tubing)
- Pair of Banjo Air Fittings (M10 x 1.0, will also accommodate 1/8 NPT)
- Pressure Port Cap w/ Seal Washer (M10 x 1.0, will also accommodate 1/8 NPT)
- Instruction Manual w/ Spring Chart
