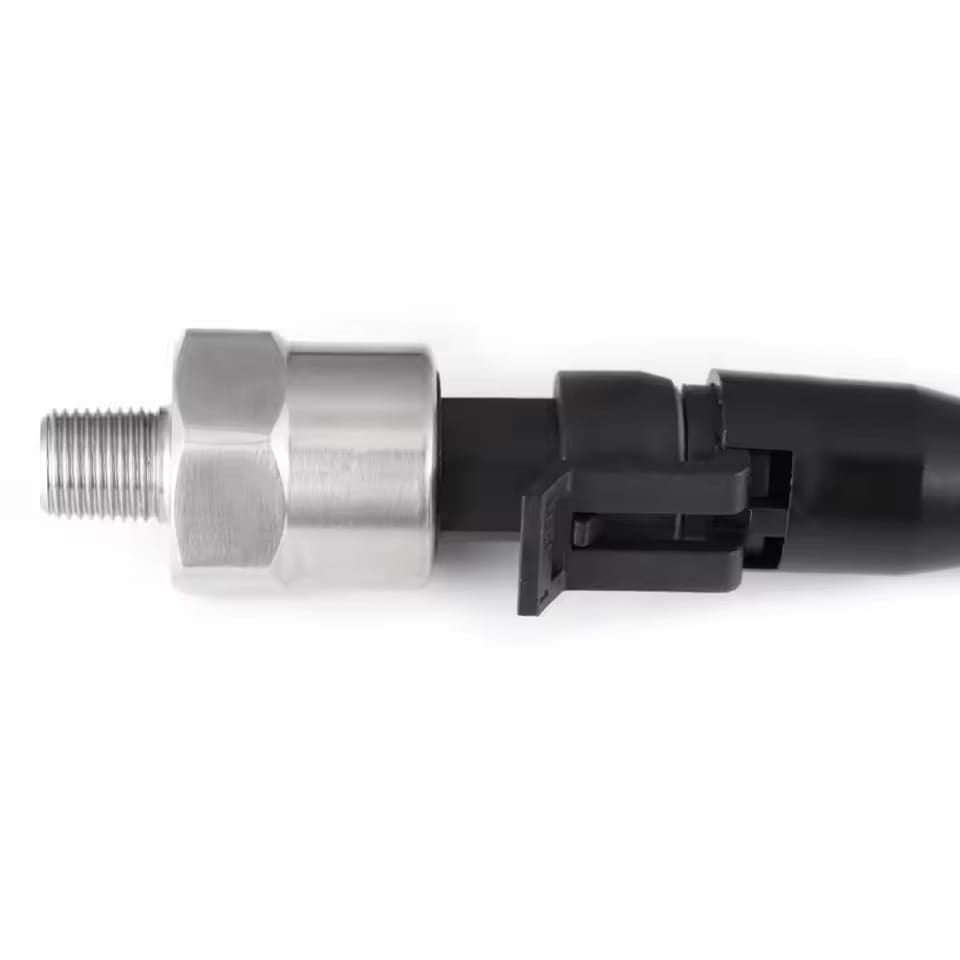

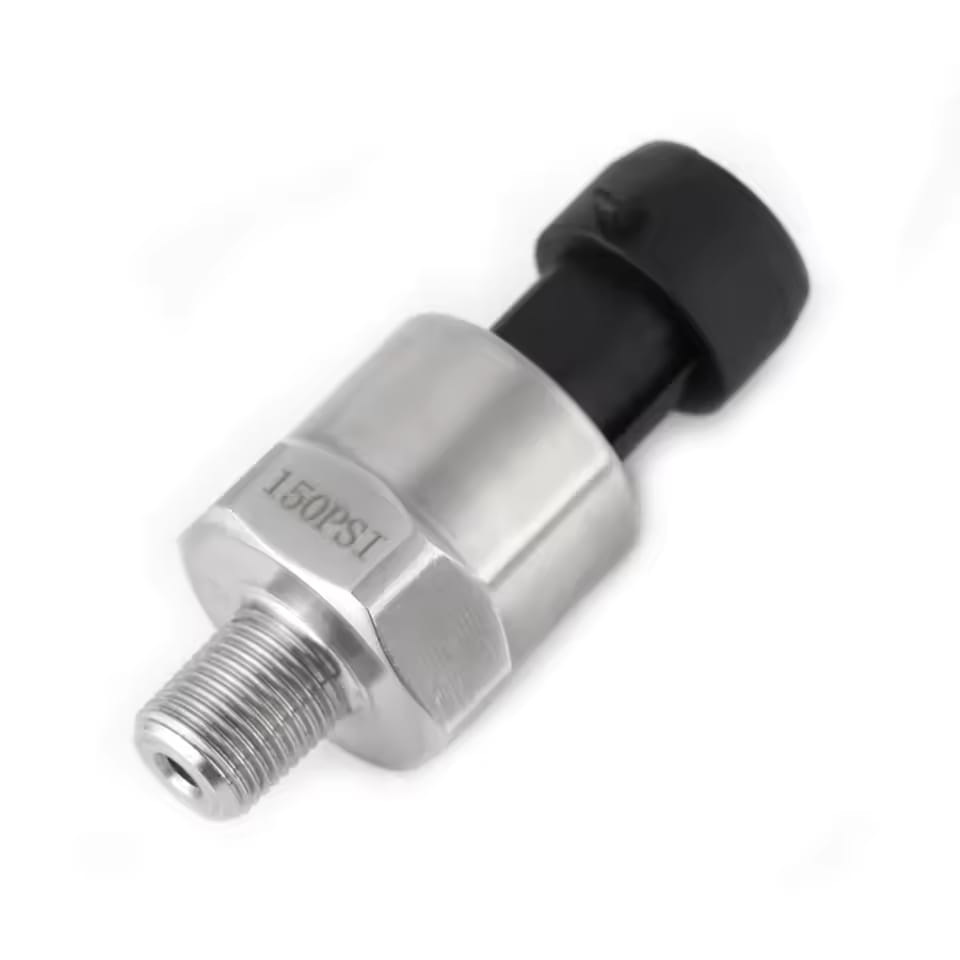

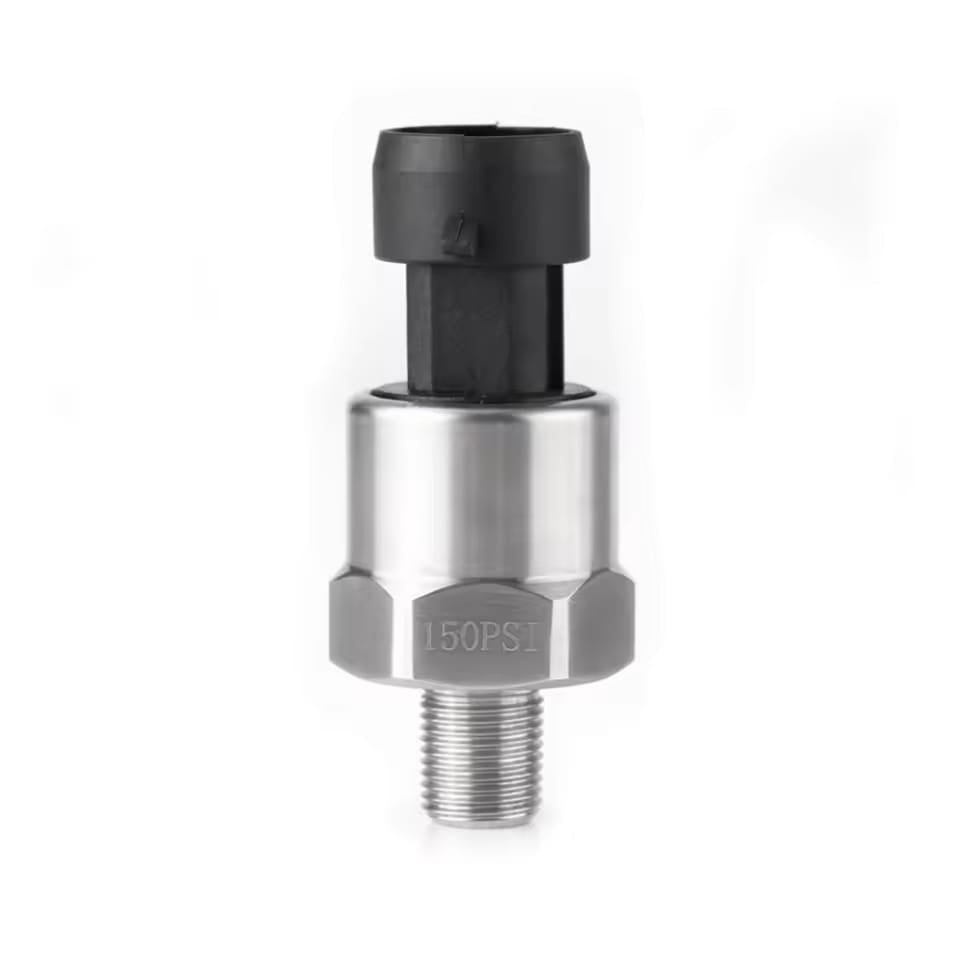

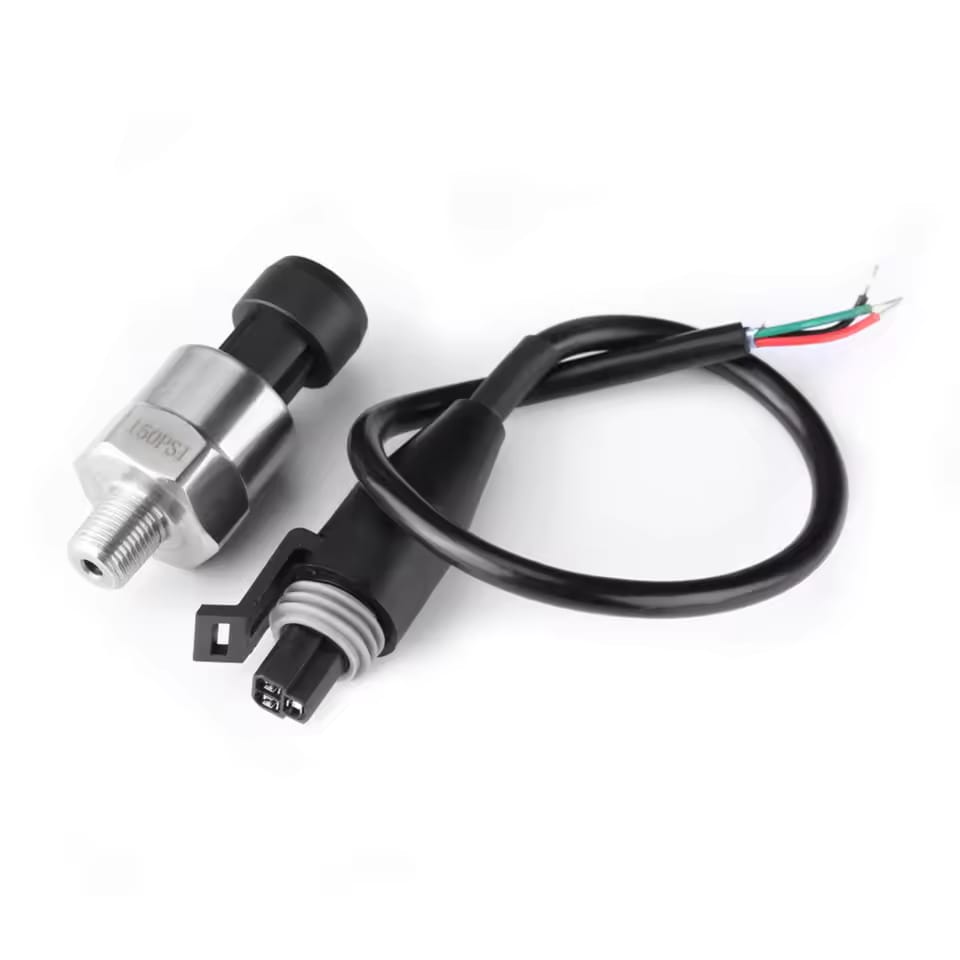

0-150 PSI Pressure Sensor Oil Fuel Water Pressure Transducer Stainless Steel Pressure Sender Gauge DC 5V 1/8 inch NPT Thread
Features:
-
It's an advance pressure transducer than traditional mechanical pressure transducer.
-
-
±2%FS small output error, including nonlinear, hysteresis error and repeatability, full temperature range.
-
-
Light weight and small size, convenient to install and operate.
-
-
It has complete voltage protection function.
-
-
Works for oil, fuel, diesel, gas, water, pressure, can be used in oil tank, gas tank, diesel tank etc.
-
150 psi
Input: 0-150 psi
Output: 0.5-4.5V linear voltage output. 0 psi outputs 0.5V, 75 psi outputs 2.5V, 150 psi outputs 4.5V
Accuracy: +/-0.5%FS
Thread: 1/8" NPT

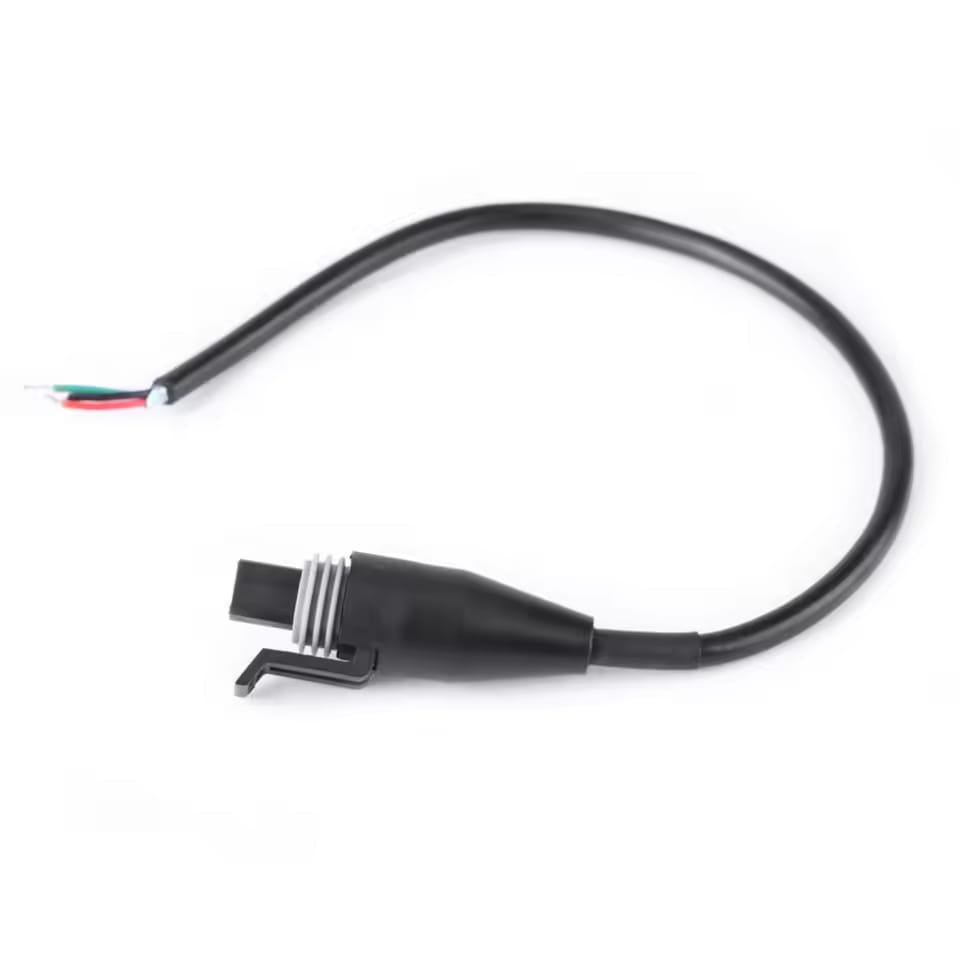

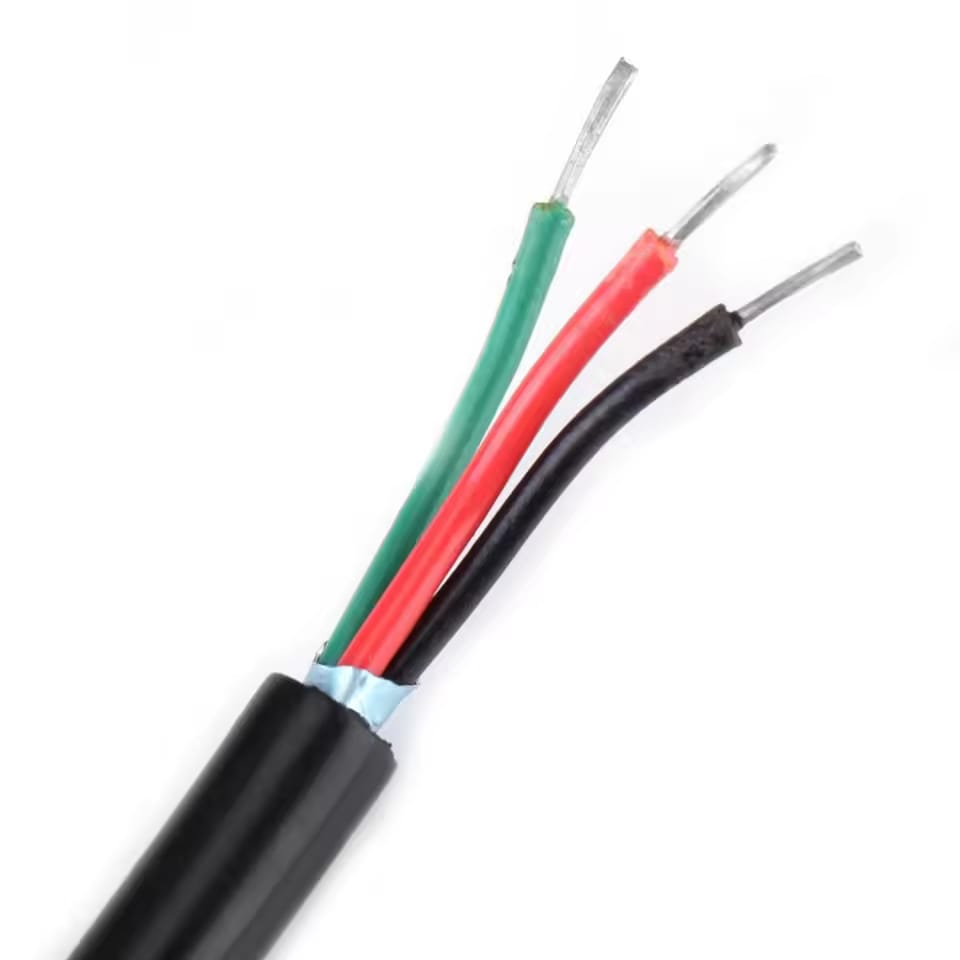

Wiring: Red for +5V; Black for ground; Green for output
Overload Capacity: 2-4 times of rated pressure
Working Temperature: -40℃~+120℃
Compensation Temperature: 0℃~+80℃
Protection Class: IP67
Pressure Medium: Oil, gas and water which is compatible with 316L stainless steel
Load Resistance: ≤(supply power-6.5V/0.02A)Ω
Long-term Stability: Less than 0.1%FS/year
Temperature Effect on Zero: Typical:0.02%FS/℃; Maximum:0.05%FS/℃
Temperature Effect on Sensitivity: Typical: 0.02%FS/℃; Maximum: 0.05%FS/℃
Shock Resistance: 1000g
Anti-Shock: ≤+/-0.01%FS(X,Y,Z axes, 200Hz/g)
Response Time: ≤1ms
Insulation Resistance: >100mΩ 500VDC
Explosion-proof Class: ExiaTTCT6
Electromagnetism Compatibility: EN50051-1
